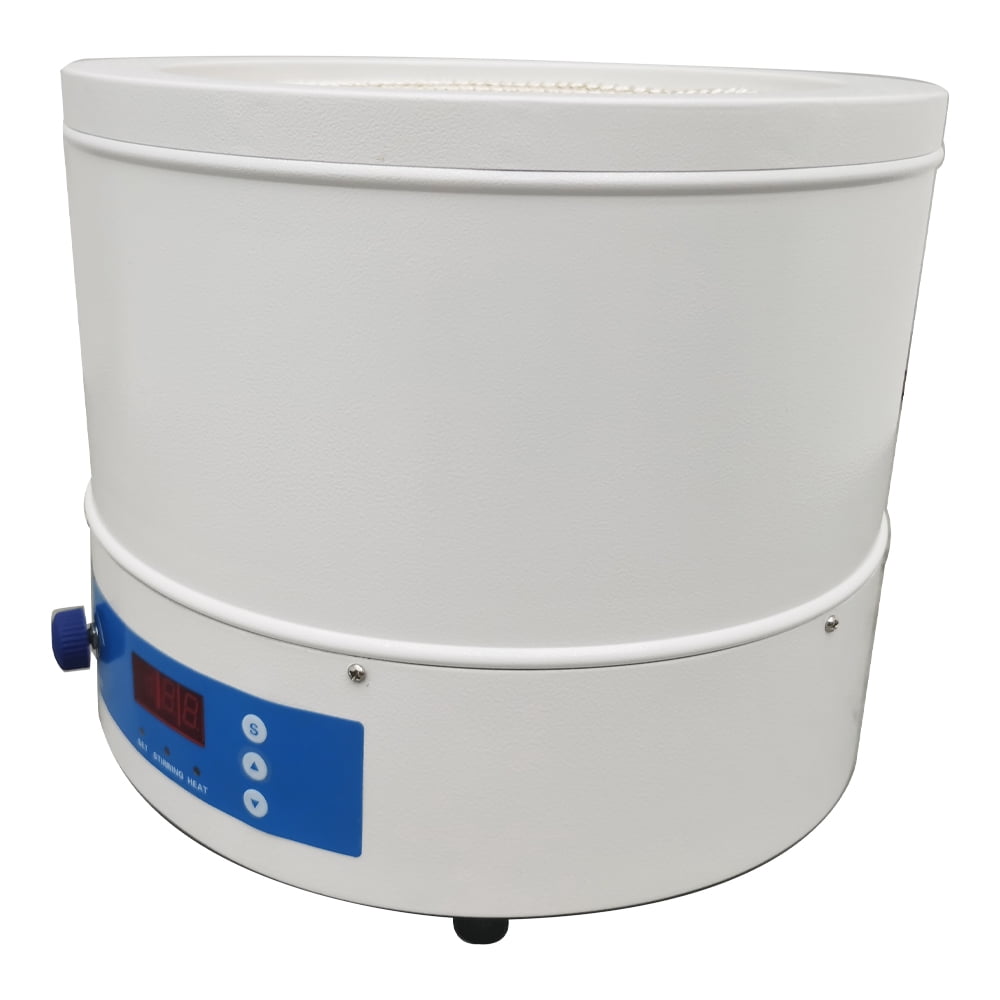

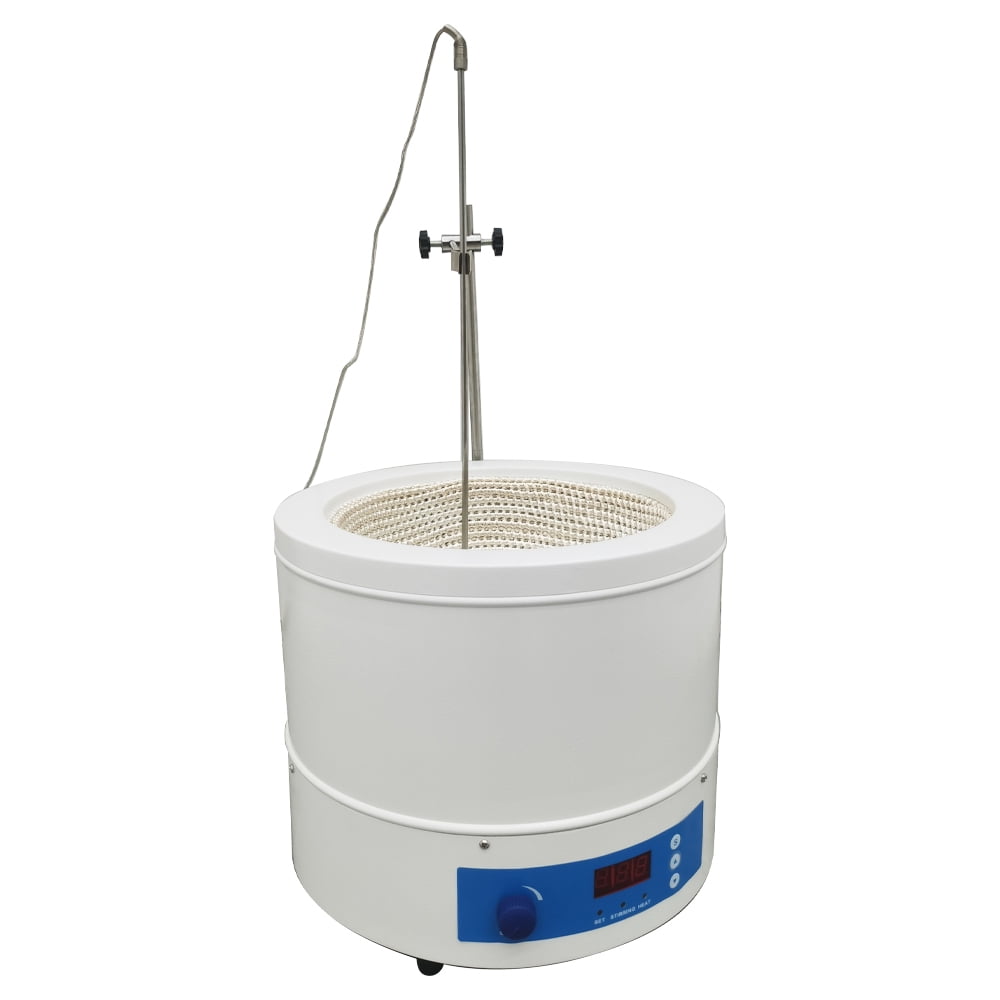

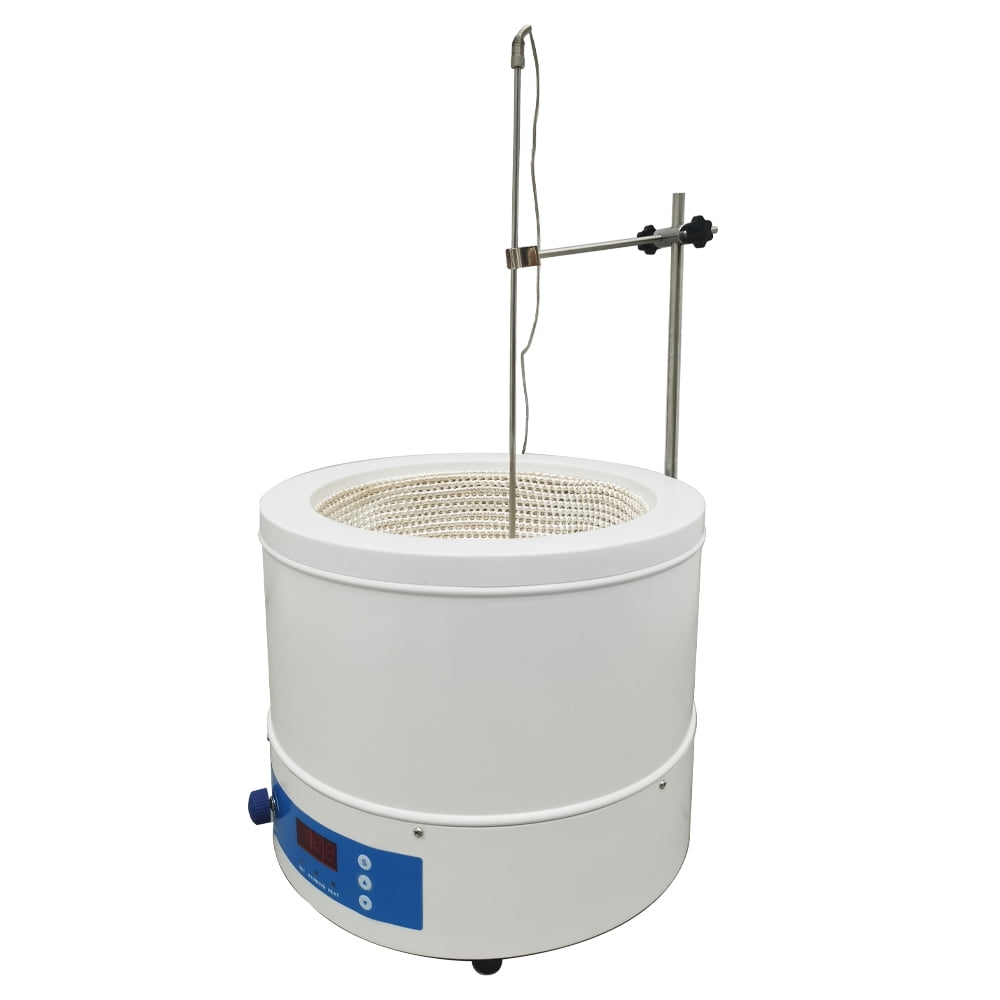

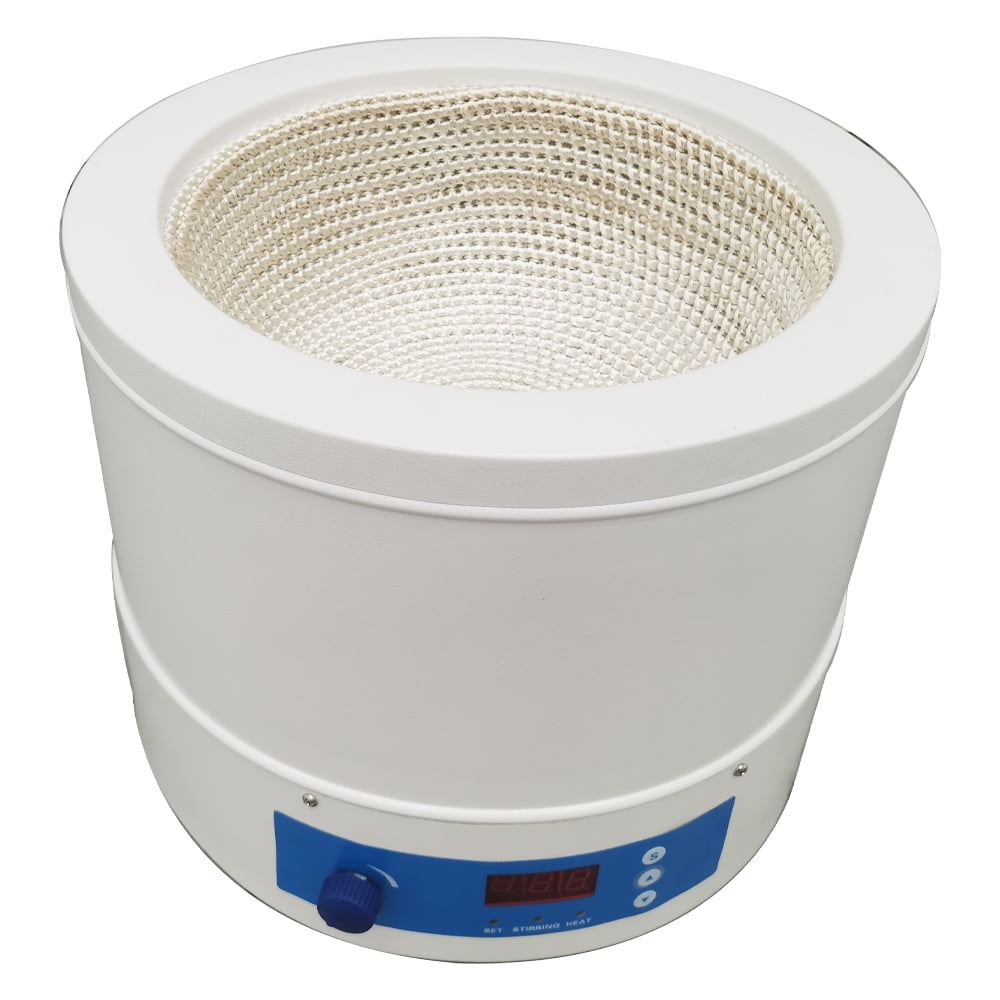

1.1Gal Stirring Digital Thermostatic Heating Sleeve Magnetic Stirrer Heating Mantle Temp Set 220V

Introduction:<br> Designing by European techniques, with its advance technology, stable performance, novel structure and good using effect, this equipment is widely used for in heating in labs of colleges, petrochemical industries, medicine, and environment protection institutions etc.<br> <br> Parameters:<br> Model: 98-II-C<br> Capacity (ml): 5000<br> Voltage: 220V<br> Power(W): 800<br> Ambient temperature: 5~40℃<br> Ambient humidity: ≤90%<br> Max. use tem.: 300℃<br> Tem. Range: Ambient tem.～40℃<br> Sensor: PT100<br> Working mode: continuous<br> <br> Operation instruction:<br> a) Place the equipment on level worktable, put the sensor frame, and plug it into sensor block on the back of the instruments<br> b) Fill a liquid container in the instrument, and set the sensor in the heated liquid.<br> c) Use the same voltage as the machine required, and then the instrument’s screen will display the temperature of the liquid.<br> d) Set temperature: after press “S” ,the green button “Set” indicator light, the screen display the set temperature, and press the arrow keys to select the temperature you want to use. After setting temperature, press“S” to display the actual temperature.<br> e) When heated the red indicator light, lights off when not heated.<br> f) When temperature rose to the set temperature at the first time, it may be washed for few degrees; it will stabilize down when the temperature came down.<br> g) Stirring adjust: Adjust the stirring speed by turn the knob clockwise.<br> <br> Usage notes:<br> 1. Because of the surface of heat insulation material is coated with grease, in the first used shall first heat except when heating oil, will appear white smoke, shut off the power after heating to smokeless, when the temperature come down, it can normal use.<br> 2. When use the instrument should pour the liquid into the container firstly, and then put in the instrument to use.<br> <br> Item included(020208):<br> Techtongda 220V 5000ml Stirring Digital Display Thermostatic Heating Sleeve Magnetic Stirrer Heating Mantle Temp Set CNC Display Lab

• Using high quality nickel-chrome heating resistance wire sealed in high temperature insulation layer. Woven into half the ball in heating sets, with characteristics of large heating area, fast warm-up, high temperature evenness, no open flame and so on.
• Use advanced digital temperature control system can precisely control the temperature of the heated liquid, easy to use, high precision, temperature display intuitive.
• Cold rolling sheet stretching and spraying exterior.
• The inner core adopts hemisoherical design, which can colsely wrap the flask, wiht uniform heating and good thermal insulation.
• This heating mantle has function of magnetic stirring, which makes the liquid is heated equably under the action of stirring.Heating and stirring can be used simultaneously, noval and beautiful appearance, simple opration and good use effect.
